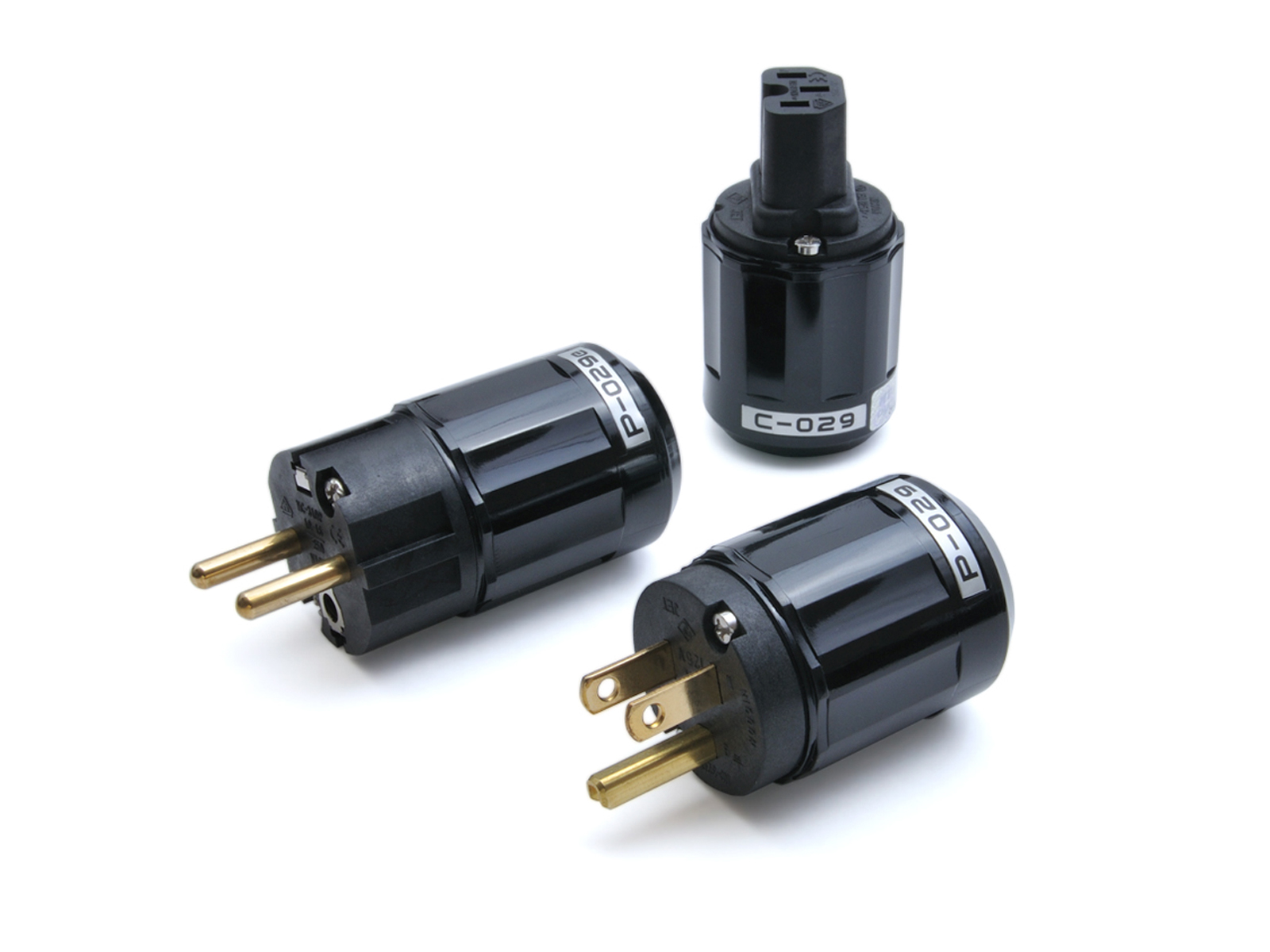

P-029 / C-029 / C-029e

The entry grade of P/C series with non-plated brass contacts



Every one of our products are totally "made in Japan" even down to minute component, all because for us to maintain our high standard of quality and reliability, it is essential to have every production system under our direct and strict control. Our products are for special market where minute vibration from loose connection or due to imperfect choice of material could become a vital failure.

We carefully design each and every component for easiness in assembling, simplicity and requirement, cost factor is secondary. Instead we ignore excess decoration and unnecessary complexity. We are proud to present the true value for your enjoyment.

These plugs and connectors are not merely high grade; every step is taken to realize the `State of the Art` for audio application.


Blade Features

The basic material is pure brass for P-029/C-029. Its rigidty makes the contact secure.

※The blade of P-029 would often be oxidized because of its material nature, pure brass.
When it happens, you need to polish it out frequently by soft cotton cloth.

P-029/C-029 don't have plating on its contacts.

Body Features

■Inner Body
30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body of the P-029/C-029 effectively attenuates high-speed vibrations.

All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.

■ Stainless Screws
The screws of P/C series are all made of highly rigid stainless so its screw head doesn't collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve high S/N ratio without being magnetized at its conection part.

■Outer Housing
The outer cover of P/C series is made of PC ( Polycarbonate ) for its rigidity and hardness.
It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.

Product Management System with Serial Numbered Hologram Seals

All Oyaide Electric's P/C series AC plugs and IEC connector are all labeled with a "hologram sticker" with a serial number for management purposes. The product is shipped in its original can case, which protects it from shocks during transportation.

It has been confirmed that counterfeit products that look very similar to the "P/C series AC plug and IEC connector are currently circulating.

All products are shipped in an "original can case," with a "hologram sticker" with serial number attached to the side of the main body, and the name sticker attached to the side of the main body has been changed to an "aluminum plate sticker" to distinguish it from counterfeit products.

Before your purchasing, please contact your local authorized Oyaide distributor if you are unsure.


Model Name P-029 / C-029 / P-029e
Blade Material Brass
Handling Cable O.D. Min 6.5mm  Max 17.0mm
Maximum Handling Wire Gauge / AWG 5.5sq. / 10AWG
Rated V/A P-029 : 125V/15A <PS>E
C-029 : 125V/15A <PS>E, 250V/10A CE
P-029e : 250V/16A CE
Release Date 2004/05/01
