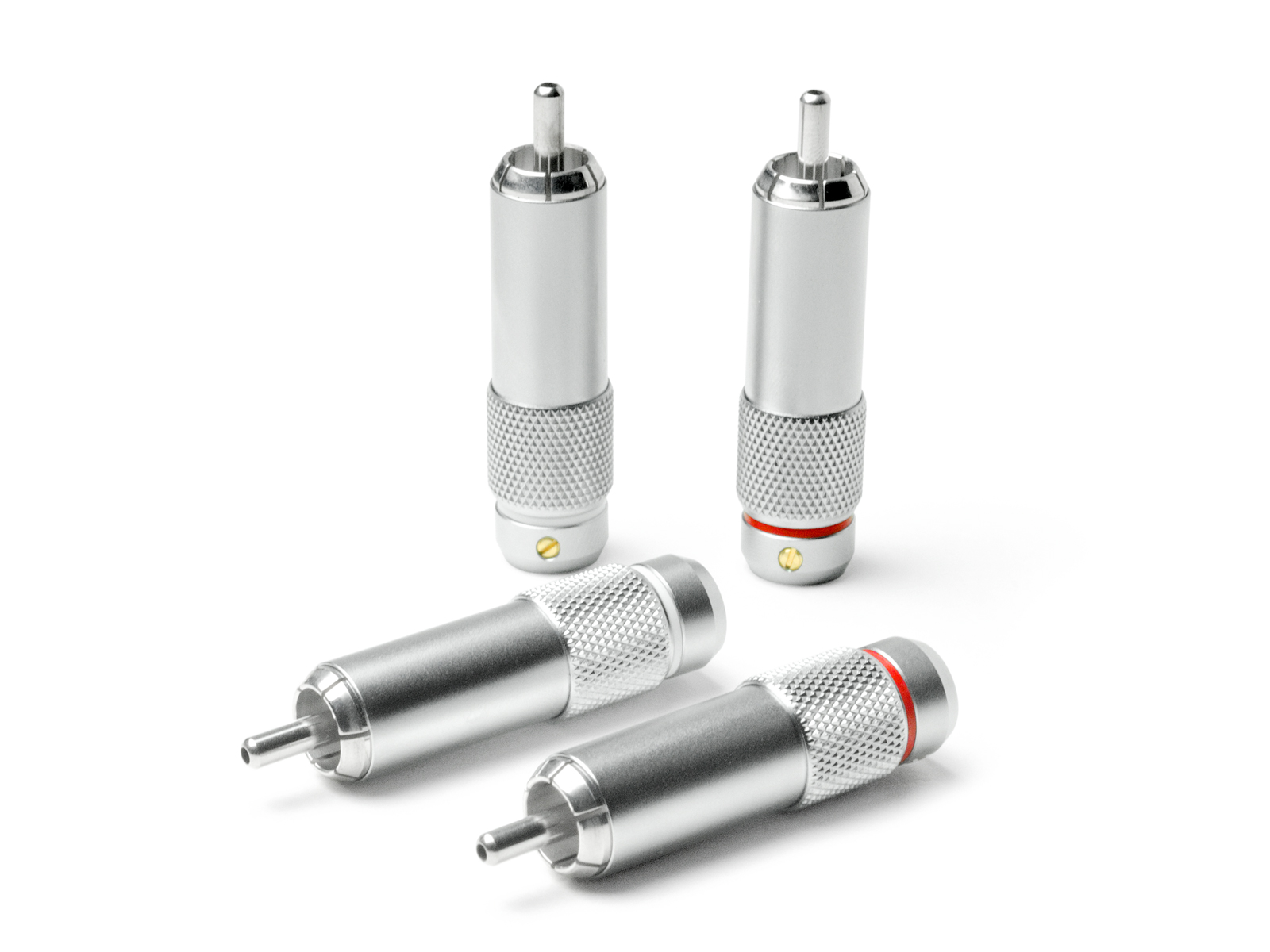

The supreme RCA plug with the new collet-chuck locking function



The “GENESIS” is the original RCA plug with our new collet chuck locking structure. This newly improved collet chuck locking structure which is placed on the lower middle of the sleeve actualizes secure holding to the connection part due to its independence from the outer sleeve. In In addition, because of the coating of high-viscosity grease on the screw part, you have never felt like this smooth rotation before. It is not only for your feeling pleasure but also for the vibration damping between the inner body and the outer sleeve.

On the surface of its brass sleeve is treated by hard chromate plating like quality cameras. In addition, we employed phosphor bronze contact pin. And we applied our new combination of platinum + rhodium plating on the center pin of our original RCA plug. This combination sets you the new standard of sound for audiophile. Furthermore, all fine parts are shaped by highly accurate CNC routing machine.

The “GENESIS” will bring the higher standard of the architectural quality of the existing RCA connecters.


The Collet Chuck Locking Function

The collet chuck locking function is employed for “GENESIS”. Although an existing collet chuck locking RCA plug is tightened by rotating its whole sleeve, GENESIS is tightened by its independent rocking middle sleeve. Herewith we succeeded to minimize the gap in between its inner body and locking sleeve and attenuate resonance which has been a problem for existing collet check structure.

The Easy Usability of the New Collect Chuck Lock

Its collet chuck rocking sleeve is placed on the lower middle of the sleeve. So, it is easy to turn it even if it is under the situation where it seems to be hard to rotate

Inner Body

The high-viscosity grease is coated on the screw part of rocking sleeve and body. Due to its high-viscosity, it actualizes to prevent looseness and damp unnecessary vibrations. In addition, each screw thread of the rocking sleeve and end cap has different pitch and opposite screw turn for tightness.

PTFE Insulator

The insulator is significant factor in enhancing the transmitting capabilities of the cable. For the purpose of lessening signal loss, we employed PTFE which provides excellent electrical isolation and low electric permittivity.


Model Name GENESIS
Materials Contact : Phosphor Bronze
Insert resin : PTFE
Outer shell : Brass (RoHS Compliant)
Cable clamp : Brass (RoHS Compliant)
Plating Contact pin : Platinum + Rhodium
Inner Body : Platinum + Rhodium
Outer Sleeves : Hard Chrome
Connection Type Soldering
Handling Cable Outer Diameter ~9.0mm
Packing Unit 4 pieces ( 2 pcs in Red Marking, 2 pcs in White Marking ) in a box
Release date 2009/11/20
