"ACROSS 3000" features an original and innovative cable design created by the revolutionary "C.I.S." structure, which uses an air layer as a damper.

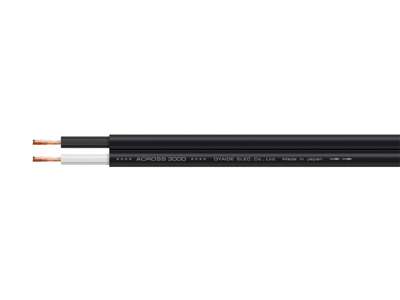

The original "ACROSS 2000" was introduced in 2006 as the first speaker cable in the ACROSS series with a 2.0sq. conductor. In 2015, it was replaced by the ACROSS 3000, which uses Oyaide's proprietary precision conductor "102 SSC" and 3E stranding and its conductor size has been increased to 3.0 sq.
ACROSS speaker cables have been Oyaide's core speaker cables since their launch. Their high performance is recognized by audiophiles around the world.
"ACROSS 3000 SGB" is a new model of ACROSS 3000 speaker cable with banana plugs.
The parts around the cable have been reexamined and changed from the previous model. The newly developed "SGBN" pure silver + 24K gold-plated banana plugs and "NRF-005T" non-magnetic noise suppression tape have been newly adopted, and every detail of each material has been carefully considered and updated to the dates.
While minimizing the loss of the output signal from the amplifier, we have eliminated as much as possible the so-called "cable quirks," including the plugs, so that the signal is transmitted to the speakers as it is. The flat, neutral tone and agile response accurately portrays music without bloating the sound image, providing natural sound connections from low to high frequencies, accurate phase and time alignment, and distortion-free detail.
By creating a more accurate sound field, vocals are balanced and localized at speaker tweeter height without being scattered upward, bass sounds are perceived as lower, and music is reproduced with a natural sound image between speakers.
All audio accessories, including cables, are interactive with audio equipment.
The ACROSS 3000 SGB is a dramatic evolution of the ACROSS 3000 SGB, which helps to reveal previously unnoticed details of expression in a wide variety of music genres from all ages, regardless of whether the source is digital or analog. The ACROSS 3000 SGB is the ultimate in innovative technology.
We hope you will enjoy this new product, which is the culmination of Oyaide's confidence in its innovative technology.
Click here for more information on 102SSC.
The 3E stranding structure is a concentric stranding arrangement of stranded wires in a lump-sum twisted wire conductor, and by arranging three different strand diameters, the stranding arrangement is made denser. By arranging three different strand diameters, the strand arrangement is made denser, enabling a finer conductor structure and improving conductor characteristics.
The strands of these three different conductor diameters are arranged geometrically to minimize the gaps between strands and improve strand density.
Furthermore, the outer diameter of the strands has been downsized to maintain a stable and highly accurate outer diameter, and the cross section after twisting is a perfect circle, an unprecedented conductor structure in the world. This ensures uniform adhesion between the insulator and conductor, eliminating random thickness of the insulation material and making it uniform.
Oyaide's original cross insulated stabilizer structure (C.I.S. Structure) is used as a damper to lower the capacitance and improve the high-frequency characteristics while attenuating vibrations with its excellent stabilizing effect.
The basic architecture adopts a coaxial layout to maximize the C.I.S. Structure, which supports the center conductor at a point rather than a surface to minimize mutual interference between the center conductor and the outside. The internal air damper layout is a completely different idea.
The conventional approach to vibration damping is to use compounds to dampen internally generated vibration. The C.I.S. is a new concept. The C.I.S. structure not only has an excellent stabilizing effect, but also contributes greatly to the improvement of electrical characteristics. The air layer is highly effective in significantly reducing capacitance.
The insulation material that makes up the C.I.S structure is polyolefin, which has an extremely low dielectric constant of 1/4 that of PVC. These unique structures and materials give the ACROSS 3000 an unrivaled agile response and stress-free spatial expression.
A total of eight "SGBN" banana plugs, newly developed by Oyaide Electric as a speaker terminal connection plug, are installed at both the left and right terminals. The "SGBN" is exquisitely tuned by applying silver plating to the base to extend the high-frequency range while taking advantage of the long-term stability and non-habitual phase characteristics of the mid-range range provided by gold plating.
The size of the tip of the banana plug is designed for WBT speaker terminals (I/D: 4.5mm) as a standard. Of course, we have also verified it with speaker terminals other than WBT, and it can be used with most of banana plug receptacle up to 4.2mm I/D.
The base material is made of phosphor bronze, which is CNC machined and has excellent springiness. The main body is carefully buffed and polished one by one by a polishing craftsman, and a mirror surface undercoating is applied. The body is polished to perfection and finished with a two-layer plating process consisting of a sterling silver plating base and thick 24K gold plating.
A highly rigid stainless steel set screw with a diameter of 5 mm is used for the 4 mm diameter cable feed-through. This eliminates the gap between the body and the screw, and the cable and plug body are secured by the two screws to ensure a secure contact and fixation.
The "SGBN" and the cable are joined by a torque-controlled screw tightening. In addition, the plug and cable are completely sealed with adhesive-backed, cross-linked polyolefin heat-shrinkable tubing with excellent gas barrier properties for durability and conductor oxidation protection.

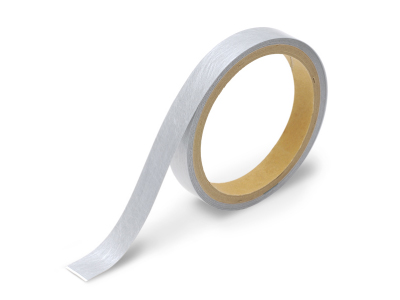

Speaker cables are susceptible to electric field noise due to electrostatic induction caused by stray capacitance between conductors. NRF-005T" is an innovative non-magnetic noise suppression tape developed by Asahi Kasei Corporation using PULSHUT®, which has little effect on the original sound and suppresses electric field noise by converting it into Joule heat. By tuning with "NRF-005T", we have achieved both musical vibrancy and original sound fidelity beyond comparison.
When tuning, "NRF-005T" is affixed to the cable branch on the speaker side to determine the sound. When attaching the cable, be sure to connect it so that the signal flows along the direction of the arrow printed on the cable surface.
Model name | ACROSS 3000 SGB |
---|---|
Cable | ACROSS 3000 |
Cable Structure | C.I.S (Cross Insulated Stabilizer ) Structure |
Conductor Material | 102SSC |
Conductor Size / AWG | 3.0sq(37/-3E) / ≈13AWG |
Cross Insulation Material | Polymer Polyolefin |
Inner Jacket Material | Polyethylene |
Outer Jacket Material | Halogen-free Polyolefin Sheath for audio |
Cable Diameter (Nominal) | 9.2×18.5mm |
Conductor Resistance | 0.63Ω/100m (at 20℃) |
Capacitance | 34pF/m (1kHz) |
Banana Plug | SGBN (Phosphor Bronze Material , Pure silver + 24K gold plating) |
Release date | 2023/1/27 |
