STB-MS/HW

The original heavyweight vinyl stabilizers

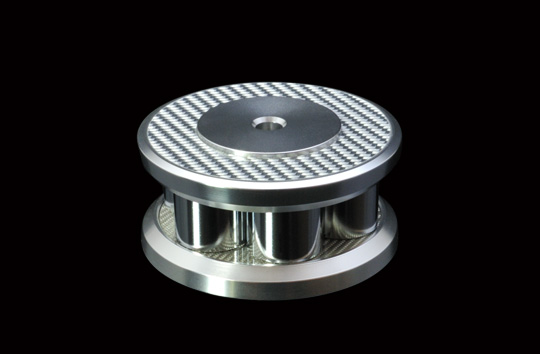

STB-MSSTB-MS

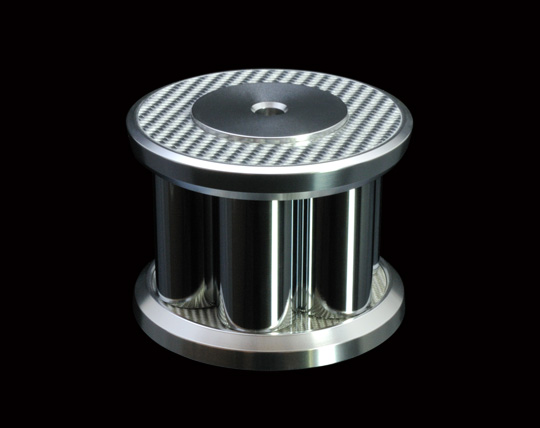

STB-HWSTB-HW

INTRODUCTION

「STB-MS」is the original vinyl stabilizer produced with innovation concepts. It is composed by detachable 10 parts and its weight is changeable by the number of the weights for your best timbre tuning. And, the optional carbon weight, 「STB-CM」, can be equipped according to you preference. Furthermore, it can be used for EPs by flipping it upside down.

The「STB-HW」is the heavy-weight model which is the heaviest vinyl stabilizer on the market when it is full-weighted condition. It enhances the tracing ability of the groove to the maximum.

STB-MSThe 10 component parts of STB-MS can be assemble/disassemble by users. STB-HWThe 10 component parts of STB-HW can be assemble/disassemble by users.

FEATURES

Additional tone control by customizable weights combination.

STB-MS/HW is composed by 10 parts and can be assembled/disassembled by users. (top disk x 1, bottom disk x 1, weight x 6, central axis x 1, weight spacer x 1)

The total weight is customizable for your favorite timbre tuning. In addition, with Oyaide original turntable sheet 「MJ-12」, it generates a synergistic effect for better sound quality.

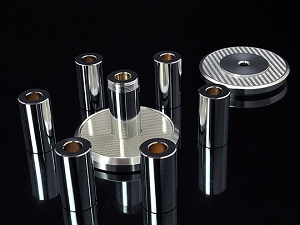

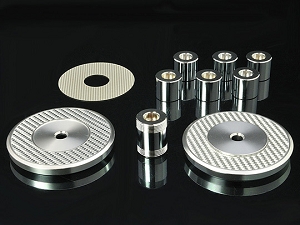

STB-MSSTB-MS disassembled STB-HWSTB-HW disassembled

The hybrid material of aluminum, brass and silver carbon

The combination of the hybrid material of aluminum, brass and silver carbon optimizes the vibration mode. It attenuates vibrations by platter rotation and enhances the trace of the grooves. Furthermore, the silver carbon weight spacer damps mutual interference of vibration. The STB-MS/HW extracts information on the vinyl maximally.

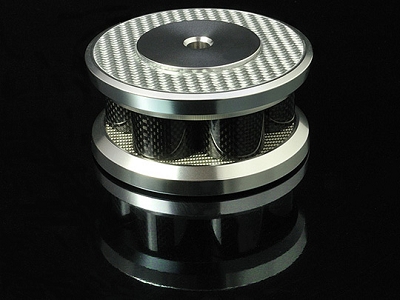

Exchange for optional carbon weight 「STB-CM」 (only for STB-MS)



For the record players by float suspension

It conform with a record player by float suspension such as 「LINN LP-12」.

*「STB-MS」with no weights or with 6 of 「STB-CM」 loaded.


Woriking as the EP stabilizer by upside down

STB-MS/HW can be used as an EP stabilizer by upside down. Due to the convex with tapered edge, it fits smoothly to the donuts hole of EP records.

STB-MS precautions

When you set 「STB-MS」, 「MJ-12」 without original turntable sheet, and general LP altogether, the height from the surface of the platter is about 40mm.

The combination of 「STB-MS」 and 「MJ-12」 would not guarantee for operation with all record players with their covers.

With record player by float suspension, there is a possibility for malfunctioning due to its weight. Please make sure if your record player is float suspension. It depends on player.

Itsφ7.23 record spindle would not guarantee for all record players.

It would not guarantee for all EPs.



STB-HW precautions

When you set 「STB-HW」, 「MJ-12」 without original turntable sheet, and general LP altogether, the height from the surface of the platter is about 60mm.

Because the weight of the combination of 「STB-MS」 and 「MJ-12」 is about 1.4kg, it would not guarantee for operation with all record players.

With record player by float suspension, there is a possibility for malfunctioning due to its weight. Please make sure if your record player is float suspension. It depends on player.

Itsφ7.23 record spindle would not guarantee for all record players.

It would not guarantee for all EPs.


SPEC

STB-MS

Material
A5052 Aluminum cut by NC machining, Alumite treatment(top/bottom disc)
Silver carbon FRP(surface)
Chrom plated pure brass(Weight×6・Axis×1)
Silver carbon sheet(Weight spacer×1)
Dimension
φ70mm H35mm
φ20mm H17mm (Weight)
Weight
200g(without weights)~ 440g(with weights)**

weight changeable by unit (40g)

Packing
(Top disk×1、Bottom disk×1、Weights×6、Axis×1、Weight spacer×1)
Release Date
2010/7/5

STB-HW

Material
A5052 Aluminum cut by NC machining, Alumite treatment(top/bottom disc)
Silver carbon FRP(surface)
Chrom plated pure brass(Weight×6・Axis×1)
Silver carbon sheet(Weight spacer×1)
Dimension
φ70mm H55mm
φ20mm H37mm (Weight)
Weight
240g(without weights)~ 790g(with weights)**

weight changeable by unit (90g)

Packing
(Top disk×1、Bottom disk×1、Weights×6、Axis×1、Weight spacer×1)
Release Date
2010/7/5
